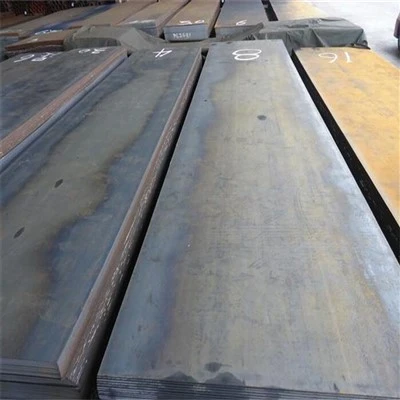

BV Qib A MARINE Steel Phaj



BV Qib A marine steel phaj yog hom hlau phaj ntawv pov thawj los ntawm Bureau Veritas (BV), lub npe nrov hauv kev lag luam hauv kev lag luam marine. Nov yog nws cov yam ntxwv tseem ceeb thiab cov ntaub ntawv tseem ceeb:



Tshuaj muaj pes tsawg leeg:

Cov pa roj carbon (C): Cov ntsiab lus siab tshaj plaws yog 0.21%.

Silicon (Si): Txog li 0.50%.

Manganese (Mn): Tsawg kawg yog 2.5 npaug ntawm cov ntsiab lus carbon.

Phosphorus (P): Tsis ntau tshaj 0.035%.

Sulfur (S): Tsis ntau tshaj 0.035%.

Mechanical zog:

Tawm lub zog: 34,100 psi (kwv yees 235 MPa).

Qhov kawg tensile zog: thaj tsam ntawm 58, 000 mus rau 75,500 psi (400 txog 520 MPa).

Elongation: Tsis pub tsawg dua 22% (rau qee qhov tuab tuab).

Kev cuam tshuam lub zog: Nws muaj qee qhov kev xav tau rau kev cuam tshuam lub zog ntawm 20 degrees Celsius, uas qhia tias nws muaj peev xwm tiv taus qhov kub thiab txias.



Qib Steel	C	Si	Mn	P	S	Als
A	Tsawg dua lossis sib npaug rau 0.21	Tsawg dua lossis sib npaug rau 0.50	Ntau dua lossis sib npaug li 2.5c	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035
B	Tsawg dua lossis sib npaug rau 0.21	Tsawg dua lossis sib npaug rau 0.35	0.8~1.2	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035
D	Tsawg dua lossis sib npaug rau 0.21	Tsawg dua lossis sib npaug rau 0.35	0.6~1.2	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
E	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.35	0.7~1.2	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
AW 32	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
DH 32	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
EH 32	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
FH 32	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
AW 36	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
DH 36	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
EH 36	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
FH 36	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
AW 40	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015
DH40	Tsawg dua lossis sib npaug rau 0.18	Tsawg dua lossis sib npaug rau 0.50	0.9~1.6	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	Ntau dua lossis sib npaug rau 0.015



Daim ntawv thov:

Shipbuilding: Siv dav hauv kev tsim kho ntawm ntau yam qauv ntawm cov nkoj, xws li hulls, decks, thiab bulkheads. Nws muab qhov tsim nyog lub zog thiab kav ntev rau lub nkoj cov qauv.

Offshore platforms: tuaj yeem siv rau hauv kev tsim kho ntawm ntug dej hiav txwv roj drilling platforms, platform yeeb nkab pob qij txha, thiab lwm yam, uas yuav tsum tau muaj zog thiab corrosion kuj nyob rau hauv marine ib puag ncig.









Vim li cas thiaj xaiv peb?
Peb txaus siab rau peb lub peev xwm los muab cov kev cai daws teeb meem rau peb cov neeg siv khoom cov kev xav tau tshwj xeeb.
Peb txheeb xyuas thiab sib piv cov khoom dhau los thiab cov xwm txheej tam sim no ntawm peb BV Qib A MARINE Steel Phaj, thiab tsim cov txheej txheem tshiab thiab cov txheej txheem.
Peb cov neeg siv khoom ntseeg peb kom xa cov khoom zoo Cold-rolled Steel khoom raws sij hawm thiab ntawm pob nyiaj siv.
Peb nruj me ntsis siv cov kev pab cuam sov so thiab kev xav tom qab muag, ua raws li kev txhim kho kev ua haujlwm zoo.
Peb muab ntau hom Cold-rolled Steel khoom kom tau raws li cov neeg siv khoom xav tau.
Peb ua raws li cov neeg siv khoom-centric thiab hom-taw qhia kev lag luam lub tswv yim, thiab txuas ntxiv muab cov neeg siv khoom lag luam txhim khu kev qha thiab zoo heev thiab cov kev pabcuam.
Peb lub Hoobkas tau cog lus los txhawb nqa cov qauv siab tshaj plaws ntawm kev nyab xeeb thiab zoo.
Txhua tus neeg ua haujlwm ntawm peb lub tuam txhab thiab txhua lub tuam haujlwm ua haujlwm ua ke los ua ke kev tswj hwm kev lag luam, kev tshaj lij thev naus laus zis, kev txheeb cais ntau thiab kev kawm ideological.
Peb cov khoom siv Cold-rolled Steel paub txog lawv cov kav ntev thiab kev ntseeg tau.
Kev vam khom rau qhov zoo tshaj plaws thiab muaj txiaj ntsig zoo ntawm cov khoom loj, peb muaj peev xwm ua tau raws li qhov sib txawv ntawm peb cov neeg siv khoom.

Cim npe nrov: bv qib a marine steel phaj, Tuam Tshoj bv qib a marine steel phaj lwm tus neeg, hoobkas
