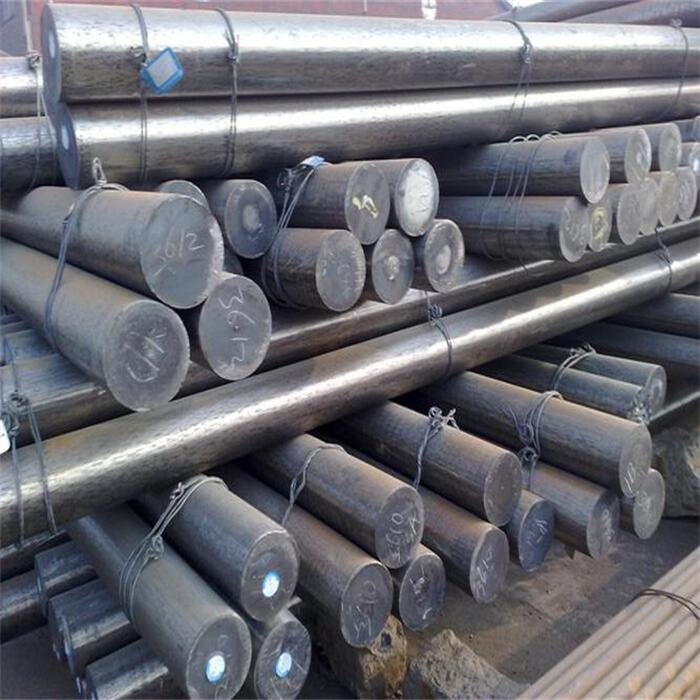

34CrAlMo5-10 Nitriding hlau

Cov Khoom Piav Qhia 34CrAlMo5-10 Nitriding Steel Qib steel no muaj kev sib xyaw ua ke ntawm cov hlau alloying, suav nrog chromium (Cr), aluminium (Al), thiab molybdenum (Mo). Cov ntsiab lus chromium pab txhawb kev txhim kho corrosion, thaum aluminium pab tsim ib qho nyuaj ...

Xa kev nug

Hauj lwm lawm

Khoom Description

34CrAlMo5-10 Nitriding hlau

andard	Qib Steel
	Tshuaj muaj pes tsawg leeg%
	C:	Mn:	Si:	P:	S:	Cr:	Mo:	Ni:	Al:
EN/DIN	41CrAlMo7-10 - 41CrAlMo7 - 1.8509
EN/DIN	0.38 - 0.45	0.4 - 0.7	<0.4	<0.025	<0.035	1.5 - 1.8	0.20 - 0.35	-	0.8 - 1.2
EN/DIN	34CrAlMo5-10 - 34CrAlMo5 - 1.8507
EN/DIN	0.30 - 0.37	0.4 - 0.7	<0.4	<0.025	<0.035	1.0 - 1.3	0.15 - 0.25	-	0.8 - 1.2
PN	38 HWM
PN	0.35 - 0.42	0.3 - 0.6	0.17 - 0.37	<0.025	<0.025	1.35 - 1.65	0.15 - 0.25	<0.25	0.7 - 1.1
NF	40 tx612
NF	0.38 - 0.45	0.5 - 0.8	<0.4	<0.030	<0.035	1.5 - 1.8	0.25 - 0.40	-	0.8 - 1.2
GOST	38Х2МЮА
GOST	0.35 - 0.42	0.3 - 0.6	0.20 - 0.45	<0.025	<0.015	1.35 - 1.65	0.15 - 0.25	<0.30	0.7 - 1.1

Cov qib steel no muaj kev sib xyaw ua ke ntawm cov ntsiab lus alloying, suav nrog chromium (Cr), aluminium (Al), thiab molybdenum (Mo). Cov ntsiab lus chromium pab txhawb kev txhim kho corrosion, thaum txhuas pab tsim cov txheej txheem nitrided nyuaj thiab ruaj khov thaum lub sijhawm nitriding txheej txheem. Molybdenum, ntawm qhov tod tes, ntxiv rau cov hlau lub zog thiab tawv, ua rau nws ruaj khov thiab muaj peev xwm tiv taus ntau yam kev ntxhov siab.

Kev tsim khoom ntawm 34CrAlMo5 - 10 nitriding steel yuav tsum muaj kev tswj xyuas meej thiab cov txheej txheem siab heev. Nws feem ntau ua tiav cov txheej txheem xws li kub forging lossis dov kom ua tiav cov duab xav tau thiab microstructure. Kev tswj kom zoo yog qhov tseem ceeb tshaj plaws ntawm txhua theem kom ntseeg tau tias cov hlau ua tau raws li cov qauv nruj uas yuav tsum tau muaj rau kev siv nitriding.
Thaum nws los txog rau cov ntawv thov, 34CrAlMo5 - 10 nitriding steel yog dav siv hauv kev tsim cov khoom siv tshuab uas yuav tsum tau ua kom tawv tawv thiab hnav tsis kam, xws li iav, ncej, thiab pistons. Hauv kev lag luam automotive, nws yog siv hauv cov khoom siv cav los txhim kho lawv cov kev ua tau zoo thiab kev ua haujlwm ntev. Nyob rau hauv aerospace teb, nws yog ua hauj lwm nyob rau hauv ib tug tseem ceeb qhov chaw uas yuav tsum tau tiv taus siab loads thiab abrasive tej yam kev mob.

LR Shipbuilding Steel Plate LR AH36,LR DH36,LR EH36,LR FH36 Marine Steel Plate Shipbuilding Steel Plate LR Spec. AH32 AH36 AH40 A B D E
Cov txheej txheem nitriding siv rau cov hlau no tsis tsuas yog txhim kho nws cov khoom nto, tab sis kuj muab cov ntaub ntawv tawv tawv uas tuaj yeem tiv taus qaug zog thiab hnav. Qhov no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas muaj kev ntseeg siab thiab kav ntev yog qhov tseem ceeb. Tsis tas li ntawd, kev sib xyaw ua ke ntawm nws cov khoom siv zoo thiab kev txhim kho saum npoo hardness los ntawm nitriding muab nws ib qho ntug hauv kev lag luam uas precision thiab kev ua tau zoo yog qhov tseem ceeb.
Hauv kev xaus, 34CrAlMo5 - 10 nitriding steel yog cov khoom tseem ceeb uas ua lub luag haujlwm tseem ceeb hauv ntau yam kev lag luam. Nws cov yam ntxwv tshwj xeeb thiab muaj peev xwm ua tau zoo nitrided ua rau nws yog ib qho tseem ceeb rau ntau daim ntawv thov engineering. Kev tshawb fawb txuas ntxiv thiab kev tsim kho tshiab hauv thaj teb ntawm nitriding steels yuav ua rau nws cov khoom zoo ntxiv thiab nthuav dav nws cov ntawv thov, pab txhawb kev nce qib ntawm cov thev naus laus zis thiab kev txhim kho cov khoom zoo hauv ntau qhov chaw.
