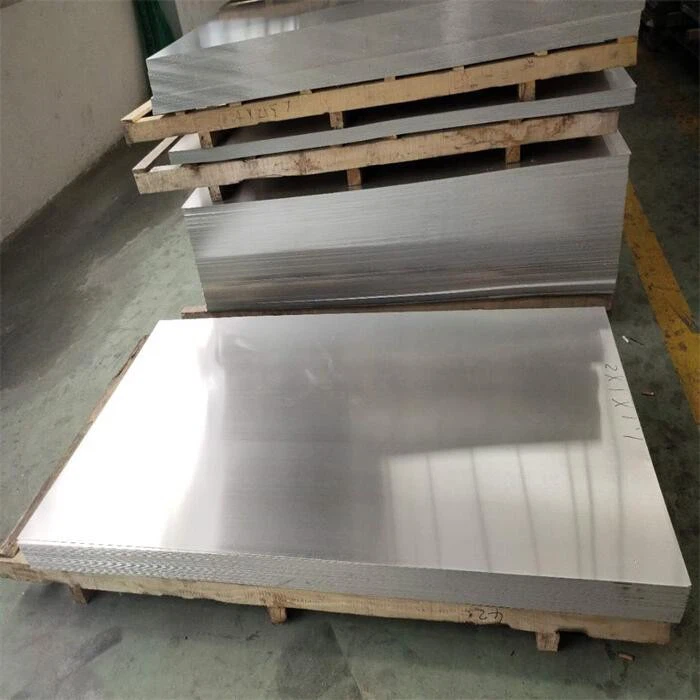

Marine Qib 5083 Aluminium Phaj



5083 txhuas yog ib qho txhuas-magnesium alloy uas ua raws li ASTM B209 / B209M-14 tus qauv. Cov hauv qab no yog cov ncauj lus kom ntxaws txog cov tshuaj muaj pes tsawg leeg, cov khoom siv kho tshuab, kev siv, lub xeev temper, qhov zoo thiab qhov tsis zoo, thiab feem ntau cov ntaub ntawv ntawm 5083 txhuas.



Specific Chemical Composition Range:

- Aluminium (Al) cov ntsiab lus: seem

- Hlau (Fe) cov ntsiab lus: Tsawg dua lossis sib npaug rau 0.40 feem pua

- Silicon (Si) cov ntsiab lus: Tsawg dua lossis sib npaug rau 0.40 feem pua

- Copper (Cu) cov ntsiab lus: Tsawg dua lossis sib npaug rau 0.10 feem pua

- Manganese (Mn) cov ntsiab lus: 0.40 feem pua ​​-1.0 feem pua

- Magnesium (Mg) cov ntsiab lus: 4.0 feem pua ​​-4.9 feem pua

- Chromium (Cr) cov ntsiab lus: 0.05 feem pua ​​-0.25 feem pua

- Zinc (Zn) cov ntsiab lus: Tsawg dua lossis sib npaug rau 0.25 feem pua

- Titanium (Ti) cov ntsiab lus: Tsawg dua lossis sib npaug rau 0.15 feem pua

- Lwm yam ntsiab lus: Tsawg dua lossis sib npaug rau 0.05 feem pua ​​(ib leeg) lossis 0.15 feem pua ​​(tag nrho)



Mechanical Properties:

- Lub zog tawm los: Ntau dua lossis sib npaug ntawm 240 MPa

- Qhov kawg tensile lub zog: Ntau dua lossis sib npaug li 270 MPa

- Elongation: Ntau dua lossis sib npaug li 12 feem pua

- Fracture toughness: Ntau dua lossis sib npaug li 95 J / m²



Daim ntawv thov:

5083 txhuas feem ntau yog siv hauv kev tsim cov nkoj, nkoj nkoj, nkoj nkoj, thiab tsheb thauj mus los hauv av. Hauv kev tsim nkoj, 5083 txhuas yog dav siv hauv kev tsim cov nkoj loj, nkoj nuv ntses, roj tankers, thiab cov dej khov. Hauv kev tsheb thauj mus los hauv av, 5083 txhuas feem ntau yog siv rau kev tsim tsheb roj tso tsheb hlau luam thiab lub cev tsheb. Tsis tas li ntawd, 5083 txhuas kuj tseem siv rau kev tsim cov roj liquefied roj tso tsheb hlau luam, cov teeb meem, cov khoom siv dav hlau, thiab lub tsheb chassis.



Temper States:

5083 txhuas muaj nyob rau hauv ntau lub xeev temper, xws li O, H111, H112, H116, thiab H321. Lub xeev O temper qhia tias cov txhuas tsis tau txais kev kho cua sov thiab tuaj yeem ua haujlwm txias. H111 temper xeev sawv cev rau qis-kub annealing, muab qis hardness thiab zoo weldability. H112 temper xeev hais txog kev kho kom ruaj khov, muab cov yas zoo thiab corrosion kuj. Lub H116 temper xeev muaj kev kho cua sov thiab ncab annealing, muab lub zog siab thiab zoo heev corrosion kuj. H321 temper xeev muaj kev kho cua sov thiab ncab annealing, muab qis hardness thiab siab zog.



Qhov zoo:

- Siab zog thiab hardness

- Zoo heev corrosion kuj

- Zoo weldability

- Zoo heev machinability

- Kev cuam tshuam tsis zoo



Qhov tsis zoo:

- Tus nqi siab dua

- Tsawg qis thermal conductivity



Feem ntau Cov Qauv:

Feem ntau cov ntaub ntawv ntawm 5083 txhuas muaj xws li phaj, coil, bar, thiab raj. Cov thicknesses sib txawv tuaj yeem raug kho raws li cov ntawv thov tshwj xeeb thiab cov kev xav tau, thiab ntau txoj kev ua haujlwm xws li ncab, sib sau, casting, thiab dov tuaj yeem siv tau.



Kev sib piv ntawm Alloy Designations nyob rau hauv txawv teb chaws:

5083 txhuas muaj cov qauv sib xyaw ua ke raws li cov qauv sib txawv hauv tebchaws thiab cheeb tsam. Piv txwv li:

- Tebchaws Asmeskas lub npe: AA5083 aluminium alloy, UNS A95083 aluminium alloy

- German designation: EN AW-5083

- Suav tsim: L83 aluminium alloy



Hauv cov ntsiab lus, 5083 txhuas yog ib qho zoo heev aluminium-magnesium alloy nrog lub zog siab thiab corrosion kuj. Nws yog tsuas yog siv nyob rau hauv shipbuilding, nkoj daim hlau, nkoj qauv, thiab av tsheb thauj mus los. Feem ntau cov ntaub ntawv ntawm 5083 txhuas muaj xws li phaj, coil, bar, thiab raj. Nws muaj ntau yam temper states haum rau txawv teb thiab yuav tsum tau. Txawm hais tias nws tus nqi siab dua, nws qhov kev ua tau zoo heev ua rau nws siv dav hauv kev lag luam uas cuam tshuam. Lub ntsiab tsis zoo ntawm 5083 aluminium alloy yog nws cov thermal conductivity qis dua.





Kab lus	Aluminium ·
Txuj	AISI, ASTM, EN, BS, GB, DIN, JIS
Khoom siv	1060,1065,1070,1070A ,1080,, 1080A ,,1085,1100,1200,1230,1450,1260,1370,1275,1185,1285,1385,2004,2011,2014, 2017,2014A ,2017A ,2214,2117,2218,2618,2618A ,2219,2519,2024,2524,3002,3102,3103,1235,1435,3003,3103,,3103A , 3203,3004,3004A , 3005, 3006 , 3007 ,3107,1050,1060,2014,2024,3003,5052,5083,6082,7075,5005,5052,5083,6061, 6063,7075,6082,7075,7050,7A04,7A09,8011,8082, thiab lwm yam
Loj	Aluminium pas nrig: φ10mm-φ410mm Aluminium phaj: 0.5mm-600mm Aluminium square bar: 8mmx8mm-570mmx10mm Lub kaum sab xis aluminium: 8mmx8mmx1mm-280mmx40mmx4mm Aluminium yob: 0 3-3mm los yog raws li xav tau
Xeev	H12,H14,H16,H18,H19,H22,H24,H26,H28,F,H112,H111 T651,T3,T451,T4,T6,
Tso zis rau	Singapore, Indonesia, Kaus Lim Qab Teb, Thaib, Nyab Laj, Saudi Arabia, Brazil, Spain, Canada, Tebchaws Asmeskas, thiab Egypt, Is Nrias teb, Kuwait, Dubai, Kuwait, Peru, Mexico, thiab Russia, Malaysia, thiab lwm yam.
Pob	Ntim ntim, export txheem ntim lossis raws li cov neeg siv khoom xav tau
Lub sij hawm xa tuaj	7-15 hnub los yog raws li qhov kev txiav txim kom muaj nuj nqis lossis kev sib tham
Nqe nqe lus	Nqe lus CIF, FOB, CFR.
Them	Letters of credit, xa xov, thiab lwm yam
Yam tsawg kawg nkaus	Ib ton





Vim li cas thiaj xaiv peb?

• Peb muaj txoj hauv kev rau cov neeg siv khoom nruab nrab thiab siv zog ua kom dhau peb cov neeg siv khoom xav tau.
• Peb cov thev naus laus zis thev naus laus zis, cov cuab yeej tsim khoom siab heev thiab kev tswj hwm zoo tuaj yeem ua kom ntseeg tau tias peb 5083aluminium yog ib txwm nyob rau hauv txoj haujlwm ua.
• Peb cov khoom Rustproof Aluminium muaj ntau yam thiab tuaj yeem siv rau ntau yam kev siv.
• Peb muaj ob lub teb chaws thiab thoob ntiaj teb kev lag luam network, thiab peb 5083 txhuas tau txais txiaj ntsig zoo los ntawm cov neeg siv khoom hauv tsev thiab thoob ntiaj teb.
• Peb cov khoom Rustproof Aluminium yog tsim los siv cov txheej txheem eco-phooj ywg thiab cov ntaub ntawv.
• Peb ntseeg tias kev lees paub cov neeg siv khoom yog peb txoj kev nrhiav mus ib txhis, thiab pab txhua tus neeg siv khoom zoo nrog qhov no raws li tus qauv.
• Peb cov khoom siv Rustproof Aluminium yog cov khoom siv ruaj khov thiab siv tau ntev, ua rau lawv xaiv tus nqi zoo.
• Ib txoj kev tshawb fawb, hloov tau thiab siv tau ntau lawm yog qhov lav rau peb lub tuam txhab kom ua raws li cov kev hloov pauv ntawm kev lag luam thiab nyob twj ywm invincible nyob rau hauv ib txwm-hloov kev sib tw ib puag ncig.
• Peb cov khoom Rustproof Aluminium yog tsim los tiv taus qhov hnyav tshaj ib puag ncig thiab huab cua.
• Peb muaj lub zog tag nrho los ua kom tau raws li qhov kev sib tw ntawm kev ua haujlwm hauv highland yav tom ntej.
